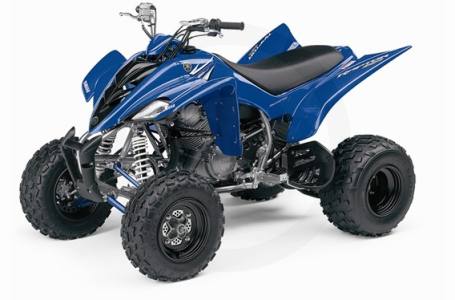

2008 Yamaha Raptor 350

Now until September 30, 2010
$.00 Off Store Price
Financing Calculator Request a Brochure
Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

More than big enough. For those who like to do their sport ATV riding abroad a highly maneuverable middleweight package, we offer the Raptor 350. You won't find a higher performance or more fun in such an affordable package.

    Key Features
    • Torquey, powerful and super-durable air-cooled SOHC four-stroke single puts out a wide, deep powerband and starts with the push of a button.
    • Rugged and smooth-shifting wide-ratio six-speed transmission; keeping that powerful engine purring is nearly effortless, whatever the terrain.
    • Reverse gear is just the thing for getting yourself out of tight spots.
    • Light, 375-pound dry weight boosts performance and handling and makes all-day rides even more enjoyable.
    • Big Raptor style and Raptor-inspired seat mean maximum rider comfort and movement with excellent sport-riding ergonomics.
    Engines
    • Light and powerful 348cc air-cooled SOHC four-stroke single produces great torque down low as well as a serious top-end rush.
    • A big, 36mm BSR Mikuni carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
    • Electric starting is standard equipment and works in any gear.
    • Shift into reverse from any gear; convenient shift lever allows easy access to reverse no matter what gear you’re in.
    • DC-CDI ignition system delivers consistent spark at all rpm levels — for quick throttle response and a smooth, broad powerband.
    • High, snorkel-type intake ensures airflow to the engine while riding in mud or water.
    • Automatic cam chain tensioner reduces engine maintenance and ensures optimal performance.
    • Easy-to-use, handlebar-mounted choke lever.
    Chassis/Suspension
    • Light and strong chassis creates a quick, super-responsive high-performance package.
    • Low, 32.3-inch seat height enhances rider comfort and provides optimal rider movement.
    • Independent double-wishbone front suspension with preload-adjustable dual-rate shocks and 7.9 inches of travel.
    • Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
    • Large-diameter ventilated hydraulic front and rear disc brakes deliver excellent stopping power even in wet conditions.
    • Extra-wide, 45mm footpegs straight off the awesome YFZ450 provide excellent grip and rider comfort.
    • Easy-to-use, toggle-link type handlebar mounted parking brake can be set with one hand.
    • Rigid and light swingarm with Raptor-type linkage rear end is controlled by a piggyback reservoir shock with adjustable preload and 8.3 inches of wheel travel; the result is consistent performance during aggressive sport riding.
    • Specially designed low-profile tires deliver outstanding traction for razor-sharp handling in a variety of terrain.
    • Easy-adjust chain adjustment feature means hassle-free chain maintenance.
    • Composite skid plates and 4.5-inch ground clearance (measured at the rear disc) means maximum underbelly protection.
    • Composite front grab bar won’t dent or rust and protects from debris and damage.
    Additional Features
    • Dual 30-watt multi-reflector halogen headlights straight off the potent YFZ450 add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
    • Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 350.
    • 2.4-gallon fuel tank means less filling up and longer, more enjoyable rides.
    Specifications
    • Type: 348cc air-cooled 4-stroke; SOHC, 2 valves
    • Bore x Stroke: 83.0mm x 64.5mm
    • Compression Ratio: 9.2:1
    • Carburetion: Mikuni 36mm BSR
    • Ignition: DC - CDI
    • Starting System: Electric
    • Transmission: 6-speed w/reverse; wet multiplate clutch
    • Drive Train: 2WD; sealed O-ring chain
    • Suspension/Front: Independent double wishbone; 5-way preload-adjustable shocks, 7.9-in travel
    • Suspension/Rear: Swingarm; preload-adjustable, 8.3-in travel
    • Brakes/Front: Dual hydraulic discs
    • Brakes/Rear: Hydraulic disc
    • Tires/Front: AT21x7-10
    • Tires/Rear: AT20x10-9
    • L x W x H: 69.7 x 43.1 x 42.5 in
    • Seat Height: 32.3 in
    • Wheelbase: 47.6 in
    • Ground Clearance: 4.5 in
    • Fuel Capacity: 2.4 gal
    • Dry Weight: 375 lb
    • Lighting: Dual 30W Krypton multi-reflector headlights & 21/5W brakelight

    Specifications

    Engine
    Engine Type 348 cc air-cooled 4-stroke; SOHC, 2 valves
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5 mm
    Engine Cooling air-cooled
    Starting System Ignition: DC - CDI; Starting System: Electric
    Chassis
    Front Suspension Independent double wishbone; 5-way preload-adjustable shocks
    Front Travel 7.9 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT21x7-10
    Rear Suspension Swingarm; preload-adjustable
    Rear Travel 8.3 in.
    Rear Brake Type Hydraulic disc
    Rear Tires AT20x10-9
    Dimensions/Capacities
    Dry Weight 375 lbs
    Fuel Capacity 2.4 gal.
    Ground Clearance 4.5 in.
    Machine Dimensions (LxWxH) 69.7" x 43.1" x 42.5"
    Wheelbase 47.6 in.
    Drive Train
    Drive Train 2WD; sealed O-ring chain
    Transmission 6-speed w/reverse; wet multiplate clutch
    General
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Team Yamaha Blue/White, Gray/Red

    Compare Models

    		 Print








    Year 2008
    Manufacturer Yamaha
    Model Raptor 350
    Style Sport
    MSRP* $4,999.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload-adjustable shocks
    Front Travel 7.9 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT21x7-10
    Rear Suspension Swingarm; preload-adjustable
    Rear Travel 8.3 in.
    Rear Brake Type Hydraulic disc
    Rear Tires AT20x10-9
    Frame
    Dimensions/Capacities
    Dry Weight 375 lbs
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.4 gal.
    Ground Clearance 4.5 in.
    Machine Dimensions (LxWxH) 69.7" x 43.1" x 42.5"
    Wheelbase 47.6 in.
    Drive Train
    Drive Train 2WD; sealed O-ring chain
    Final Drive
    Transmission 6-speed w/reverse; wet multiplate clutch
    Engine
    Engine Type 348 cc air-cooled 4-stroke; SOHC, 2 valves
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5 mm
    Cylinders
    Engine Cooling air-cooled
    Fuel System
    Starting System Ignition: DC - CDI; Starting System: Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Team Yamaha Blue/White, Gray/Red
    Warranty

    Current Promotions

    There are currently no promotions available for this product.
