2007 Woods FZ23B
Financing Calculator Request a Brochure

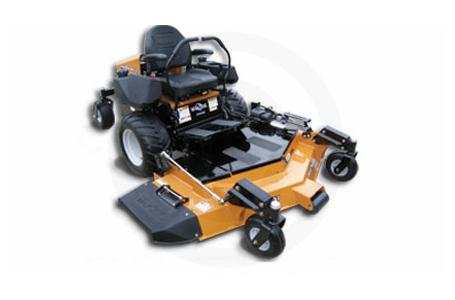

Click here to view full image.
Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

FZ-Series Front Mount Zero-Turn Riding Mower.


The Woods FZ-Series front-mount Mow’n Machines have their cutting decks mounted in front of the tractor and operator, offering many benefits compared to a mower with a mid-mount deck. With a long wheelbase, they distribute weight more evenly, improving ride comfort over other commercial zero-turn mowers. Add in the standard full suspension seat and operator fatigue is greatly reduced. Plus the long wheelbase makes them easier to maneuver on long straights. With the deck out in front, visibility is greatly improved and it is easy to cut under low growing foliage. And Woods FZ-series zero-turn mowers are built to full commercial standards, so they’re as tough as they come.


The PowerTilt™ electric option allows the cutting deck to be tilted up to a 60° angle for easy maintenance and cleaning. It also offers a power deck height adjustment that replaces the manual system, making it a simple process to adjust the cutting height. The mower is shown here with Chevron style tread tires for hilly or rough terrain; turf tires and knobby tires are also available.


Another benefit of the deck being mounted out front is that there are numerous attachment options available, so your mower can handle other tasks rather than simply cutting grass. In snow areas, the snow thrower attachment extends the use of the tractor through the winter months, to allow you to keep your sidewalks and driveway clear. A winter enclosure, or cab, helps keep you out of the elements and more comfortable. For lighter snow removal or for scraping drives and other areas, a scraper blade is available. And a power broom can help keep drives, walks, and parking lots clean year 'round.


The Woods FZ-series zero-turn mowers; quality, power, versatility, comfort. Whether it's to maintain your yard as a neighborhood showplace or because you're a landscape contractor looking for speed and efficiency without fatigue or you just want to cut your grass in the fastest, easiest manner, the FZ Mow'n Machine is the premiere choice for you!

  • Two-year or 2,000 hour warranty; commercial or residential use
  • V-Twin, OHV air-cooled gas or 3-cylinder Kubota diesel liquid-cooled engines
  • Full pressure lubrication with spin-on oil filter
  • Hour meter helps maintain maintenance schedules, servicing at proper intervals
  • Twin independent hydrostatic pumps and wheel motors
  • PowerTilt™ deck optional for easy access under deck for maintenance and cleaning
  • 54” or 61” MX decks with TrueFloat™ for reduced scalping – 72” Air-Tunnel deck also available
  • Heavy-duty, multi-bearing, greaseable spindles on deck
  • 10 mph top speed forward; 4 mph reverse
  • Adjustable steering levers
  • Easy to adjust 1-inch to 5-inch cutting height – power adjust included with PowerTilt™ option
  • Strong, powerful, and durable shaft drive to the deck
  • 11-gallon fuel capacity with storage and cup holders in the tank
  • Extra comfortable, fully adjustable suspension seat with armrests, makes mowing more enjoyable
  • Dual tail wheel standard for improved handling on uneven or rough ground
  • Choice of Turf, low-pressure Chevron, or Knobby tread tires
  • Engine hood reduces noise and keeps engine area cleaner
  • Positive lock drum parking brakes; improved security over disc brakes
  • ShrubsaverTM discharge chute
  • Great versatility with an optional snow thrower, broom, and grader/snow blade
  • Winter cab option improves comfort level when working in snow and cold
  • Extra heavy-duty frame easily handles extra weight and stress of attachments
  • Low center of gravity for improved traction and control on hills
Engine
  • Model: Vanguard® V-twin OHV
  • Horsepower: 23 hp
  • Fuel: Gas
  • Lubrication: Full pressure with spin-on oil filter
  • Fuel Capacity: 11 gallons
  • Air Filter System: Dual-clean, heavy duty pleated with foam precleaner
Drive
  • Transmission: Twin Hydrostatic Pumps - Independent Parker Wheel Motors, spin-on oil filter, uses 20w50 weight oil
  • Hydro Oil Reserve: Large cooling tank for longer life of drive system
  • Main Drive: PTO driven deck, Taper Lock Sheaves
  • Speed: 10 mph
Deck
  • Decks Available: MX54", MX61" (PowerTilt option)
  • MX Structure: Fabricated 5" deep deck with patented V-Baffle system
  • MX Spindles: Triple ball bearings - greasable
  • MX Deck Float: TrueFloat - wide up/down or side-to-side range
  • MX Deck Skirts: Heavily reinforced with V-Baffle and welded bumper
  • Cutting Height: 1" to 5" (1" - 4.5" for 72")
  • Anti-Scalp Rollers: Front Center Roller and Rear Corner Rollers Standard
  • Caster Wheels: 11" x 4.0" - 5
  • Blade Tip Speed: MX54" - 17,800 fpm, MX61" - 18,400 fpm
Tires
  • Drive Wheels: 23" x 10.5" -12
  • Tail Wheel: Dual Standard
  • Tail Wheels - Tires: 15" x 6.0" - 6
  • Brakes: Postive lock drum
Other
  • Standard Features: Fully adjustable suspension seat, cup holder, storage compartment, hour meter, flexible ShrubSaver discharge chute, engine hood reduces noise
  • Options: PowerTilt Electric tilt & height adjustment, Blower dirven Grass Collection System, Mulch Kits, Headlights, Tire Chains, Dozer/Snow Blade, Broom, Snow Thrower, ROPS, Cab
  • Warranty: 2-year or 2,000 hour limited warranty - consumer or commercial use

Specifications

Engine
Engine Manufacturer Vanguard®
Horse Power 23
Engine Type V-twin OHV
General
Transmission Twin Hydrostatic Pumps with Independent Wheel Motors
Wheel Size Caster Wheels: 11" x 4.0" - 5, Drive Wheels: 23 x 10.5 -12, Tail Wheels - Tires: 15 x 6.0 - 6
Fuel Capacity 11 gal.
Deck
Deck Size MX54", MX61" (PowerTilt option)
Discharge Type Side, Optional: Blower dirven Grass Collection System, Mulch Kits

Compare Models

 Print








Year 2007
Manufacturer Woods
Model FZ23B
Style Riding
Deck
Deck Size MX54", MX61" (PowerTilt option)
Discharge Type Side, Optional: Blower dirven Grass Collection System, Mulch Kits
Engine
Engine Manufacturer Vanguard®
Horse Power 23
Engine Type V-twin OHV
Displacement
General
Transmission Twin Hydrostatic Pumps with Independent Wheel Motors
Wheel Size Caster Wheels: 11" x 4.0" - 5, Drive Wheels: 23 x 10.5 -12, Tail Wheels - Tires: 15 x 6.0 - 6
Fuel Capacity 11 gal.
